Complete support for fire sprinkler system design.

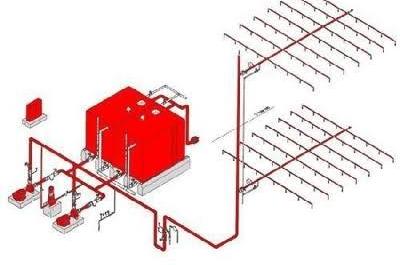

Sprinkler System Design

NFPA 13, 13R, and 13D diagrams for new construction, renovations, expansions/relocations, wet and dry systems.

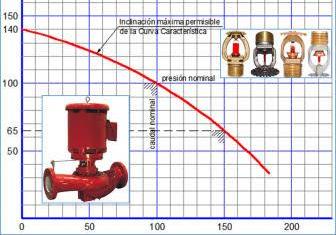

Hydraulic Calculations

Water supply evaluation, flow test analysis, pump curves, remote area calculations, and pressure optimization.

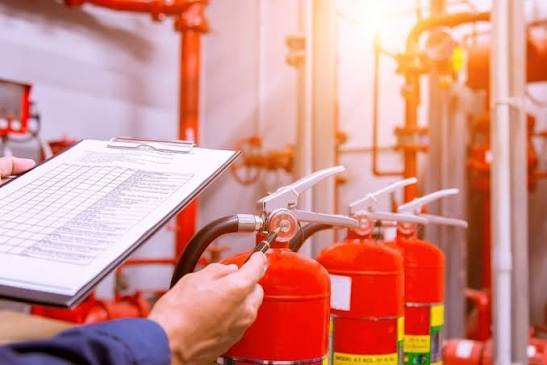

Field Surveys

Verification of existing conditions, pipe routing, sprinkler locations, riser information, and site survey documentation.

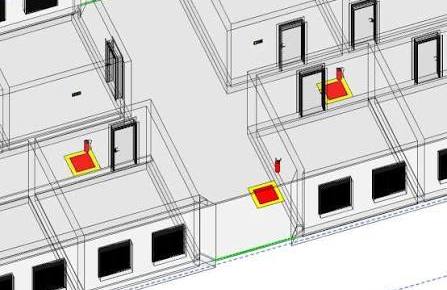

BIM/CAD Coordination

AutoCAD and 3D/BIM coordination, routing development, clash resolution, and coordinated installation drawings.

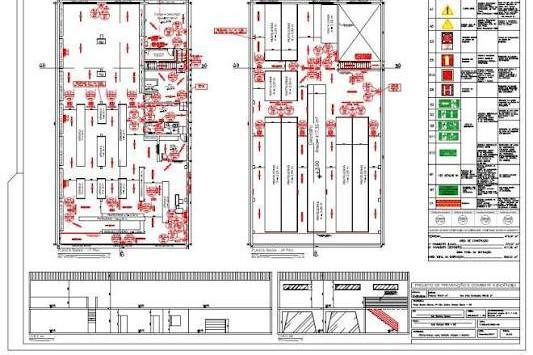

Permit Submittals

Plan sets ready for approval by the authority having jurisdiction, design revisions, responses to review comments, material information, and submission support.



As-Built Designs and Revisions

Record drawings, field changes, final revisions, and documentation reflecting the actual installation conditions.

Engineering Coverage
